Verified Safety Design Solution
Insulation Detection
Many times,you are unsure whether the insulation monitoring
device you purchased is functional or whether the IT isolated
power supply system is operating normally,yet you have no way to verify t.We have ntegrated a test circuit internally;simply
connect it to easily confirm that the system is working safely,cor- rectly,and effectively,giving you full confidence.
Grounding System
In the clean operating room isolated power supply system, the primary and secondary sides of the isolation transform- er adopt different grounding systems:the primary side uses the TNS or TT system,and the outgoing circuit employs an A-type residual current operated protective device;the sec- ondary side adopts the IT system.For ICU/CCU ward isolat- ed power supply systems,only the IT system is used.
Audible and Visual Alarm
The IT system outputs the following signals to the audible and
visual alarm indicator:”IT System Operating”signal,”Insulation Monitoring Alarm”light signal,”Insulation Monitoring Alarm”audi- ble signal,”Transformer Overload Alarm”signal,”Transformer
Over-temperature Alarm”signal,and transformer load indicator value.It also collects the buzzer mute signal simultaneously.
Incoming Power Mode
The clean operating room isolated power supply system is configured with two selectable incoming power modes:
single incoming power and dual incoming power automatic switching mode.The automatic switching time for dual in- coming power is less than 0.3 seconds.

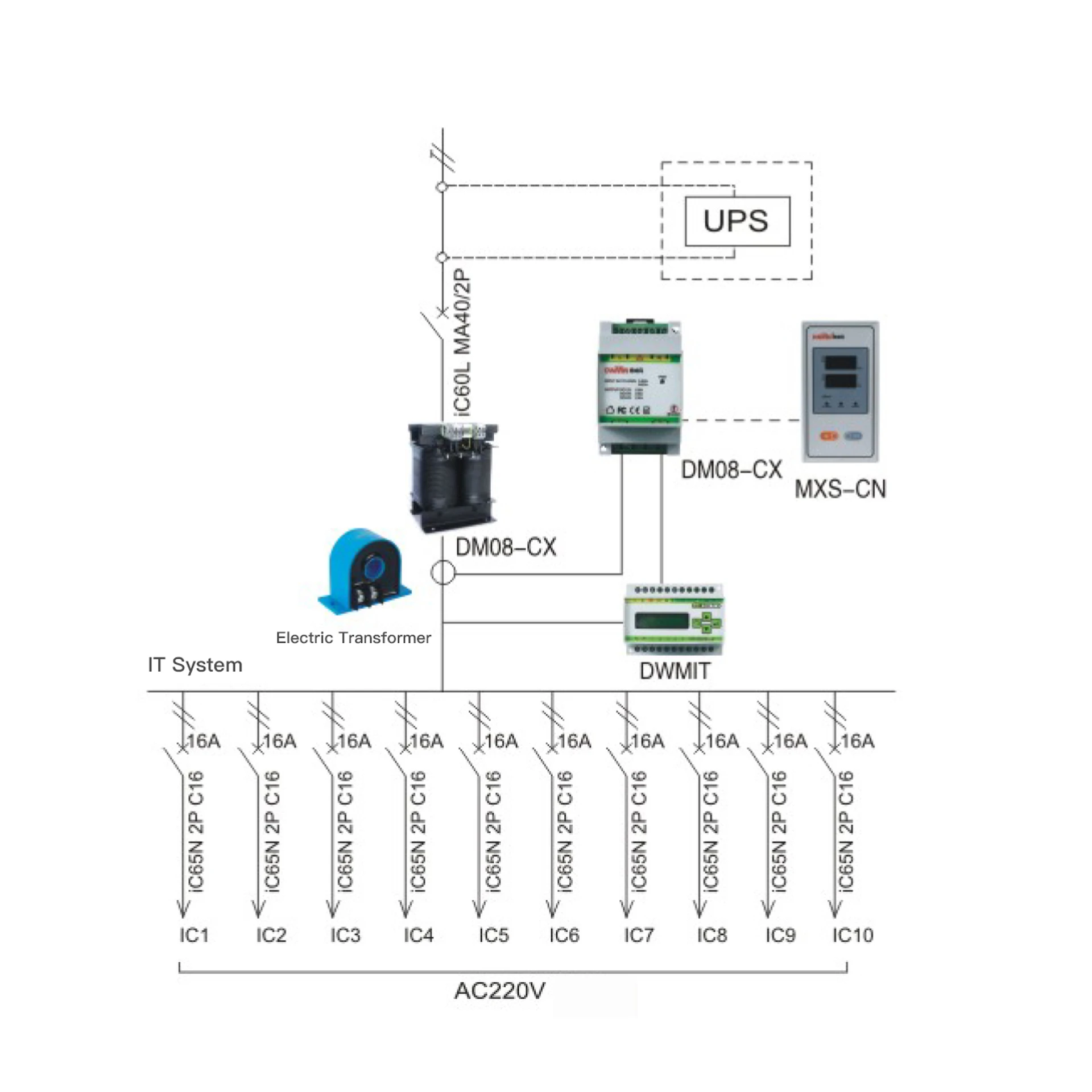

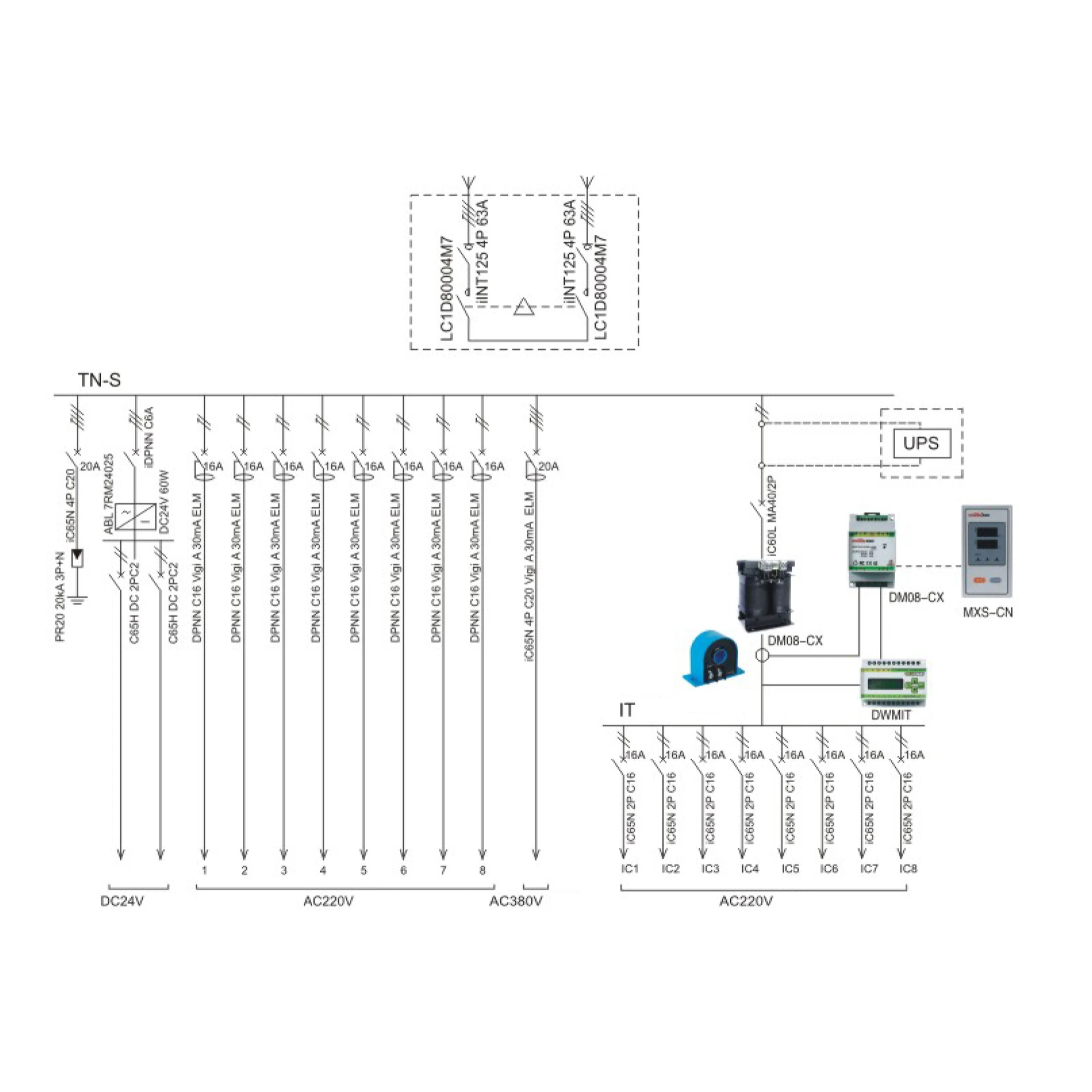

DWMIT Clean Operating Room Isolated Power Supply System(Taking 8KVA Capacity as an Example)
DWMIT Isolated Power System for Clean Operating Rooms(Taking 8kVA Capacity as an Example)
Isolated Power System for Clean Operating Rooms Isolated Power System for ICU/CCU Ward
| Pover Distribution Cabinet | 1solatic Trmsforer Capacity | 6.3/8/10kVA | 6.3/8/10kVA | |||
|---|---|---|---|---|---|---|
| Main Inlet Mode | ||||||
| Cromding | IT Syste | 8 AC220V | 8/10/12 AC220V | |||
| Syste Loop | TK-S Syster | 1 AC380V 8 AC220V 2 DC24V | ||||
| Insulation Monitoring Device | DWMIT | DWMIT | ||||
| Re sidual Current Operated Protector (BCD) | A 0perating Current | 30m4 | ||||
| Alann Indicatar Alar Displa7 | MXB-CN MXS-CN2 | MXB-CN | ||||
| IT Systern Monitoring DeviceTMOB-CX | DM08-CX | |||||
| Extermal TPS Syste | APC Smart-UPS RT 6000VA 15KVA | |||||
| External Battery Pack | SURT192KLEP/SLRT192KLEP2 | |||||
Note:The number of batteries shall be selected according to the backup time.

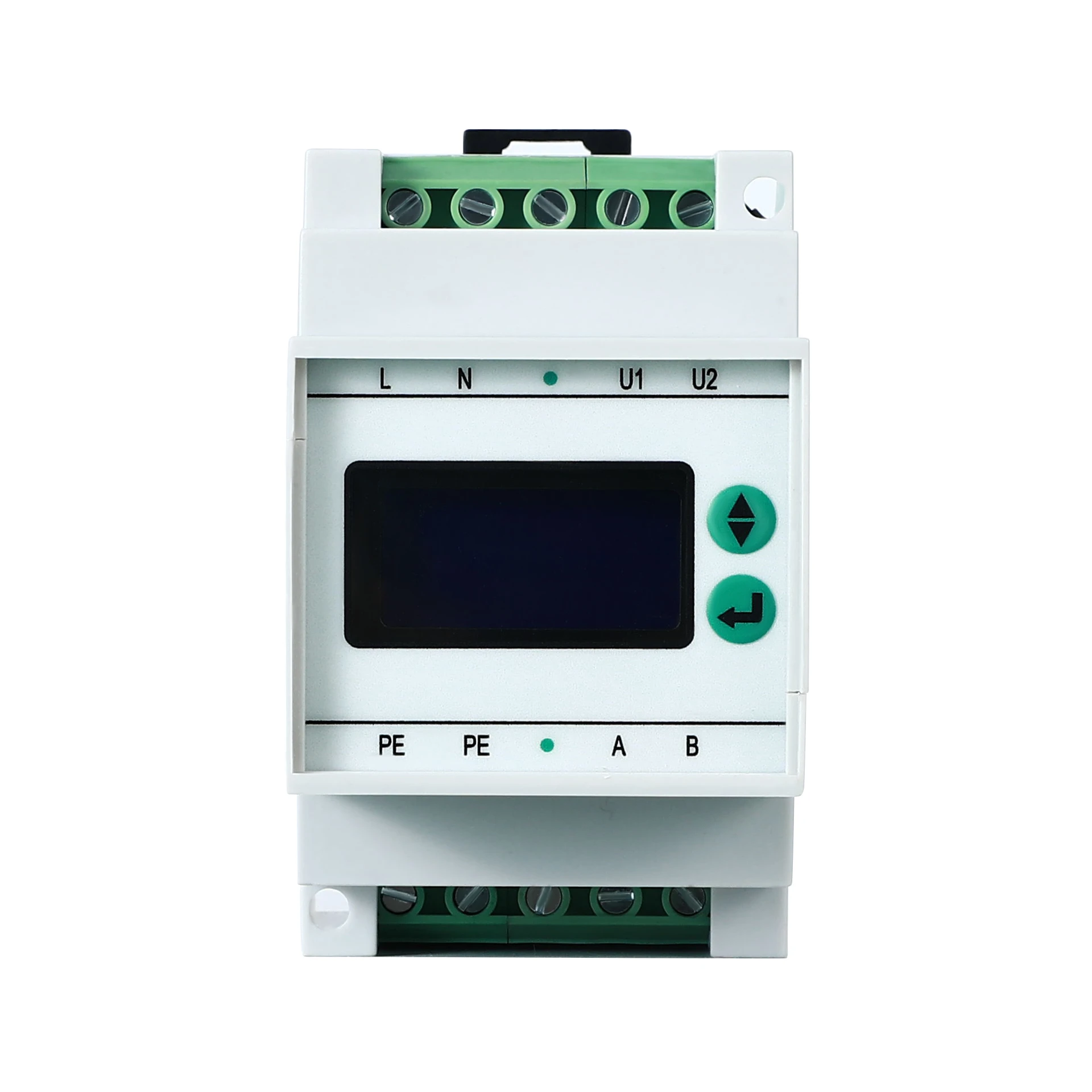

DM08-CX Medical IT Insulation Monitor
Test
Many times,you may be unsure whether the insulation monitor you
purchased is functional or whether the T isolated power supply system is operating normally,and feel frustrated that you cannot verify it.We have integrated a test circuit internally.With a simple connection,
you can confirm whether the system is working safely,correctly, and effectively with confidence.
Functions
In the IT circuit isolated by the medical transformer,when the insulation resistance to ground is generated by equipment or other means,the
isolated circuit will not form a loop.At this time,an insulation monitor must be installed to monitor in real time whether the isolated circuit has a fault,issue an alarm,and link with other safety devices.
High Performance
Military-grade components are the foundation for ensuring trouble-free operation.With optimized circuit design,all products have undergone tests such as voltage withstand,high and low temperature,aging,and impact drop simulation,fully complying with medical safety standards.
Safety
It will not affect the power supply under any extreme conditions.
The circuit and housing are filled and manufactured with fre-resistant materials,and all ports are designed with double protection circuits.
New Technology
It uses the most advanced measurement technology in the industry,
which will not generate ripple and interference in any medical equipment. Different from the currently commonly used voltage return measurement method,only two companies in the world master this technology,and
Deweimin is one of them.
Technical Parameters
| Dimensions | 100mmx74mmx74mm |
| Power Supply | AC110V/AC220V/AC380V |
| Monitoring Power Supply | AC50-60Hz 220V |
| Insulation Measurement Method | AWP |
| Load Monitoring | 0-100% |
| Communication Protocol | QMB/RS485 |
| Communication Distance | 1200m |
| Protection Degree | IP20 |
| Terminal Block | 0.5mm |
| Impulse Voltage | 5KV |
| Measuring Current | 0-100A |
| Measuring Peak Voltage | 12V |
| Operating Environment | -20℃-+65℃ |
| Insulation Monitoring Response Value | 5K |
| Insulation Fault Alarm Threshold | 20-500K |
| Electromagnetic Interference | EN61000-6-2 |
| Maximum Injection Current | 50A |
| Power Consumption | 3W |
| Impedance | 100K |
| Transformer Monitoring | Yes |
| Alarm Mode | Relay |
| Alarm Output | Normally Open or Normally Closed Contact |
| Communication Output | Yes |
| Operating Mode | Continuous Operation |
| Mounting Method | Standard DIN Rail or Screw Mounting |

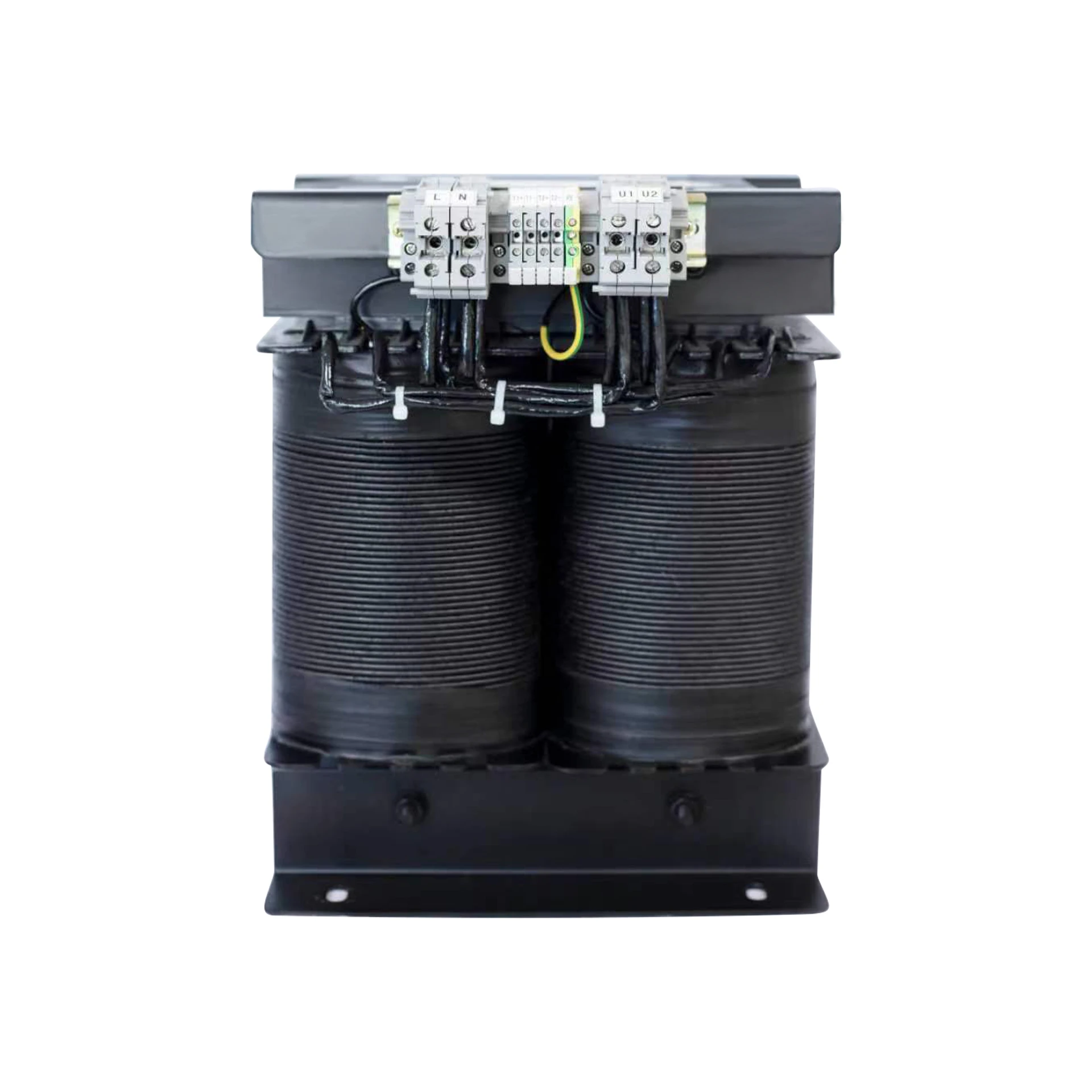

DM08-CX Medical IT Isolation Transformer
Overview
The DM08-CX series medical IT isolation transformer is used for
single-phase IT systems,complying with standards IEC60364-7-710:
2002-11 and DIN VDE0100-710 (VDE100-710):2002-11.
A fxed screen is installed between the primary and secondary windings and connected to the isolation terminals.
The installation angle is isolated from the transformer core.
Features
Single-phase isolation transformer complies with the following standard requirements:
IEC 60364-7-710:2002-11,DIN VDE0100-710:2002-11
IEC 61558-1:1997,DIN EN 61558-1(VDE 0570-1):1998
IEC 61558-2-15:1999,DIN EN 61558-2-15(VDE 0570-2-15):2001
- Rated power:3.15.100IE
- Built-in temperaturesensor
- Low noise,<35dB(A)
- High overload capacity
Technical Parameters
| Primary Voltage | AC 230V |
| Secondary Voltage | AC 230V |
| Frequency | 50-60Hz |
| Operating Mode | Continuous Operation |
| Insulation Class | B/H |
| Maximum Ambient Temperature | 40℃ |
| Protection Degree | IP00 |
| Connection Method | Separate connection terminals |
| Protection Class | I |
| PTC Resistor | One resistor per transformer winding |

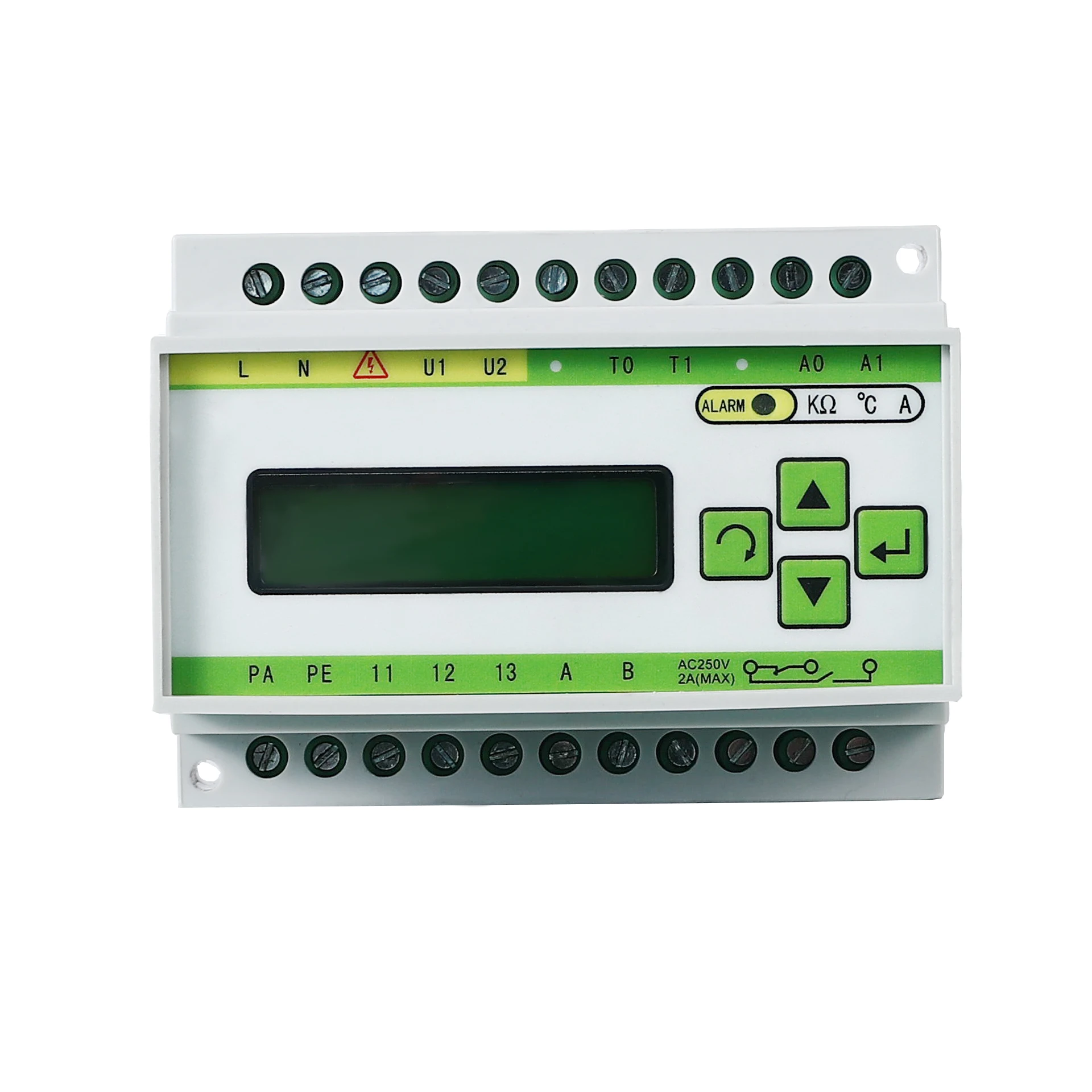

MXS-CN Remote Alarm and Operation Terminal
Overview
A full range of standalone or centrally integrated remote alarm terminals, ranging from digital tube displays to touch screens.They are powerful, integrating alarm,monitoring,system operation,and display functions; with stable performance,supported by Deweimin’s proprietary QMB
communication protocol,requiring fewer connecting cables;and
achieving precise synchronization,integrating everything from test and alarm methods to maintenance conditions.Powerful yet extremely simple to operate.
Function
When the IT isolated power supply system is required to be installed in a equipment room or power distribution room,if an alarm message occurs or the system operation status needs to be checked,the remote alarm
terminal can be installed in a location easy to view and operate,such as a nurse station or operating room information panel.The MXS-CN
displays the monitoring parameters of the medical IT isolated power
supply system in real time,and immediately responds and quickly notifies relevant personnel when the system generates an alarm message.
Technical Parameters
Audible Alarm | Built-in buzzerr | Measuring Range | 0-999A |
| Visual Alarm | Built-in LED light | Alarm Range | 0-999A |
| Alarm Dialing | Reserved interface | Temperature Alarm Range | 0-300℃ |
| Integrated Alarm Output | Insulation,Temperature,Overload,Voltage | Communication Method | MODBUS,RS485(open protocol) |
| Output Interface | Passive DO(Digital Output)points | Communication Distance | 1200m |
| Output Load | 10A/125A,5A/250VAC,5A/30VDC | Communication Interruption Handling | Alarm prompt |
Optional Alarm Accessories | Telephone alarm accessories,audible and visual alarm accessories | Heat Dissipation Method | Natural cooling |
| Insulation Alarm Range | 0~999(user-definable) | Protection Degree | IP20 |
Voltage Monitoring | Yes | Operating Ambient Temperature | -10-+60℃ |
| Voltage Alarm Range | AC 0-800V | Mounting Method | Wall-mounted,desktop |

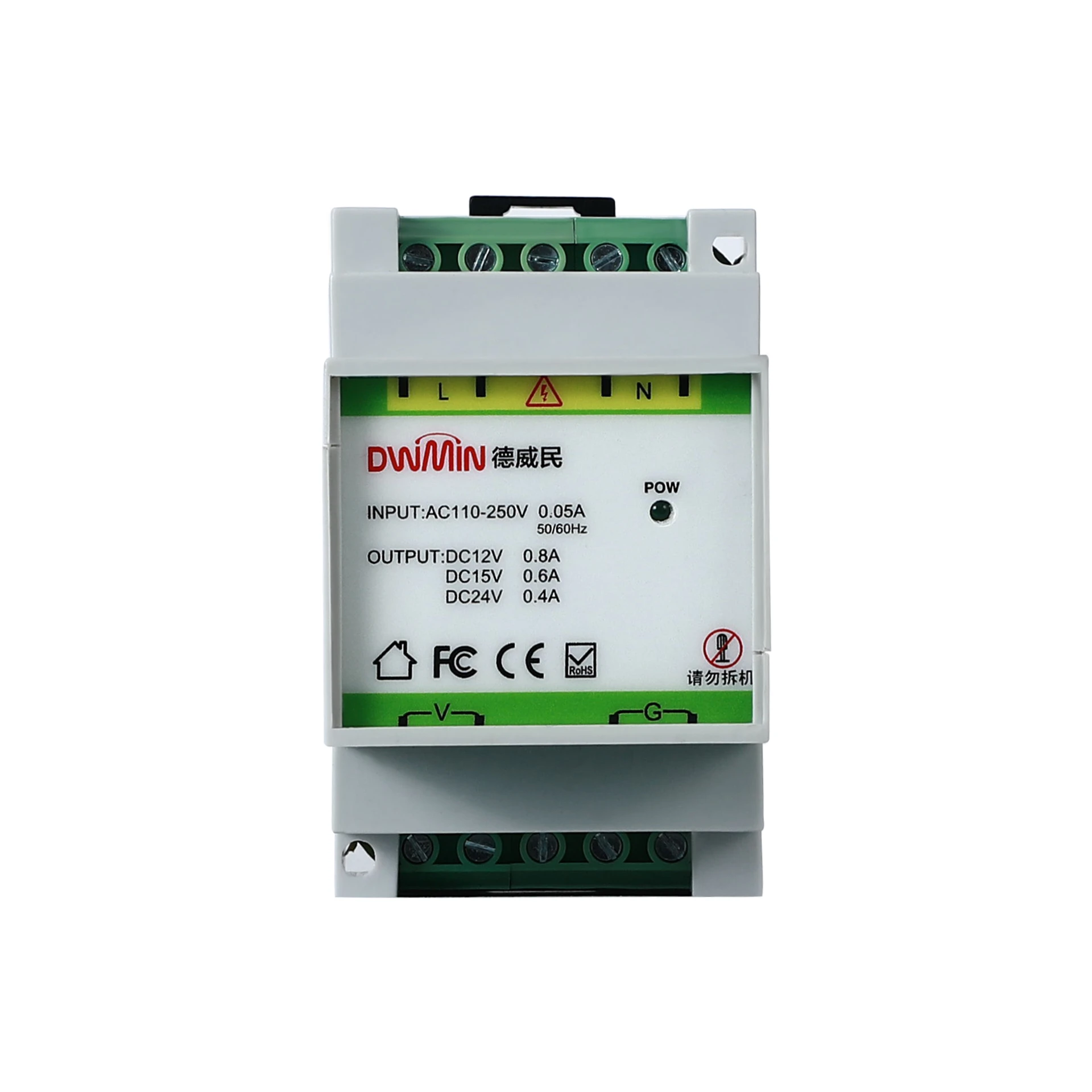

DM08-CX Special Power Supply for Instruments
Application
Special-purpose power converter
Converts 220V/110V power supply to the power required by remote alarms or other instruments for output.
Function
Electromagnetic Compatibility and Anti-interference
Specially designed and tested for powering remote alarm devices and accessories of medical IT isolated power supply systems.Like medical transformers,the use of full-copper inter-layer shielding ensures
excellent electromagnetic compatibility and anti-interference
performance,guaranteeing that it will not be interfered with by other equipment nor interfere with other equipment,even when used closely with variable frequency devices.

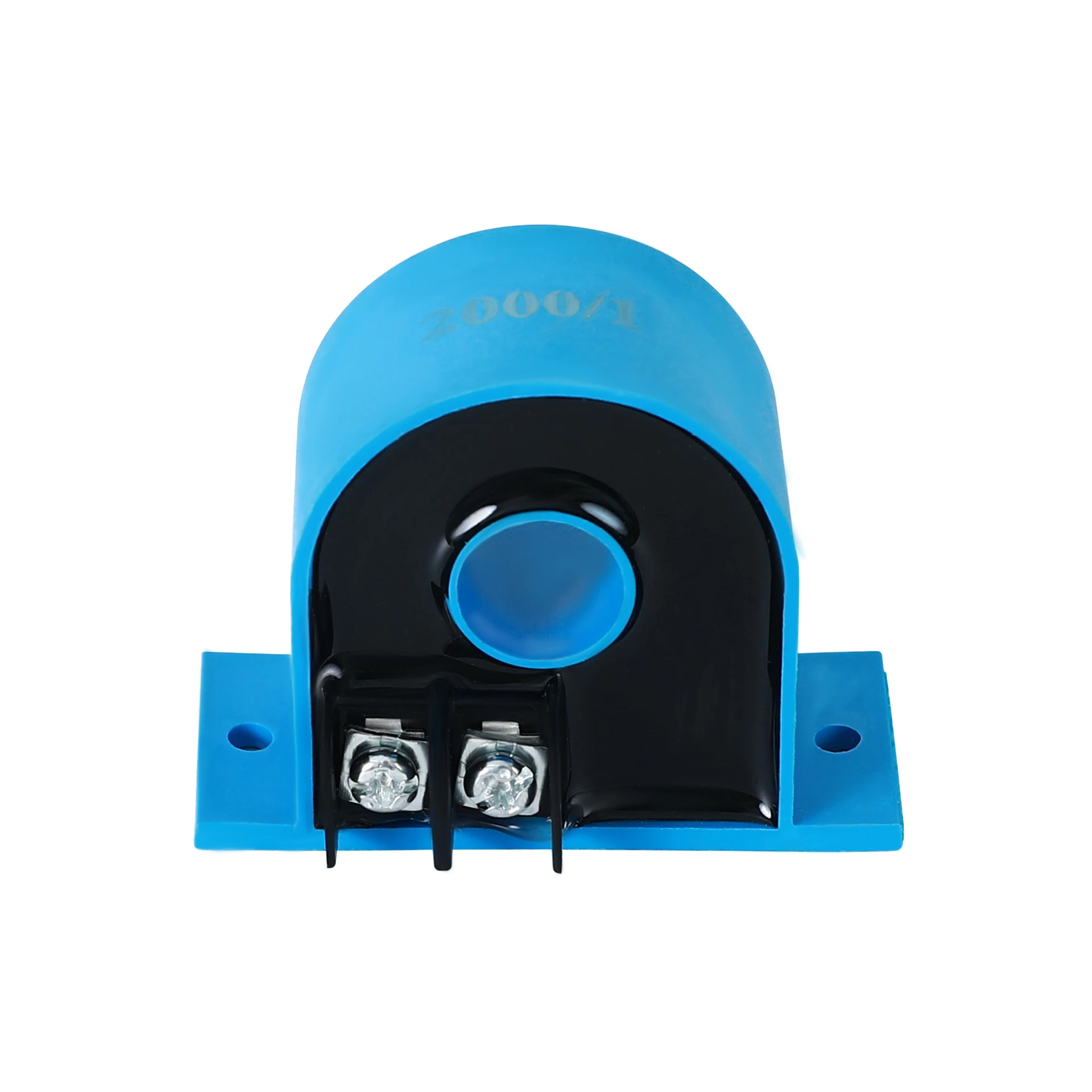

HS08-0P Special Transducer
Overview
In medical IT isolated power supply systems,high-sensitivity current
transformers can sense load changes in real time,and combined with insulation monitors,monitor and pre-alarm loads to prevent damage to transformers caused by overload.
Signal transformers can monitor various feedback signals attached to
measurement lines in real time for insulation monitoring,fault location,etc.
Suitable for medical IT isolated power supply systems with rated frequency
of 50Hz/60Hz and rated voltage below 0.66kV for current,energy,power
measurement,etc.The magnetic conductive material adopts annealed ring
iron core to ensure product accuracy of 0.2 or higher;the product can
accurately measure under a wide load range of 0.1%~300%of primary current.

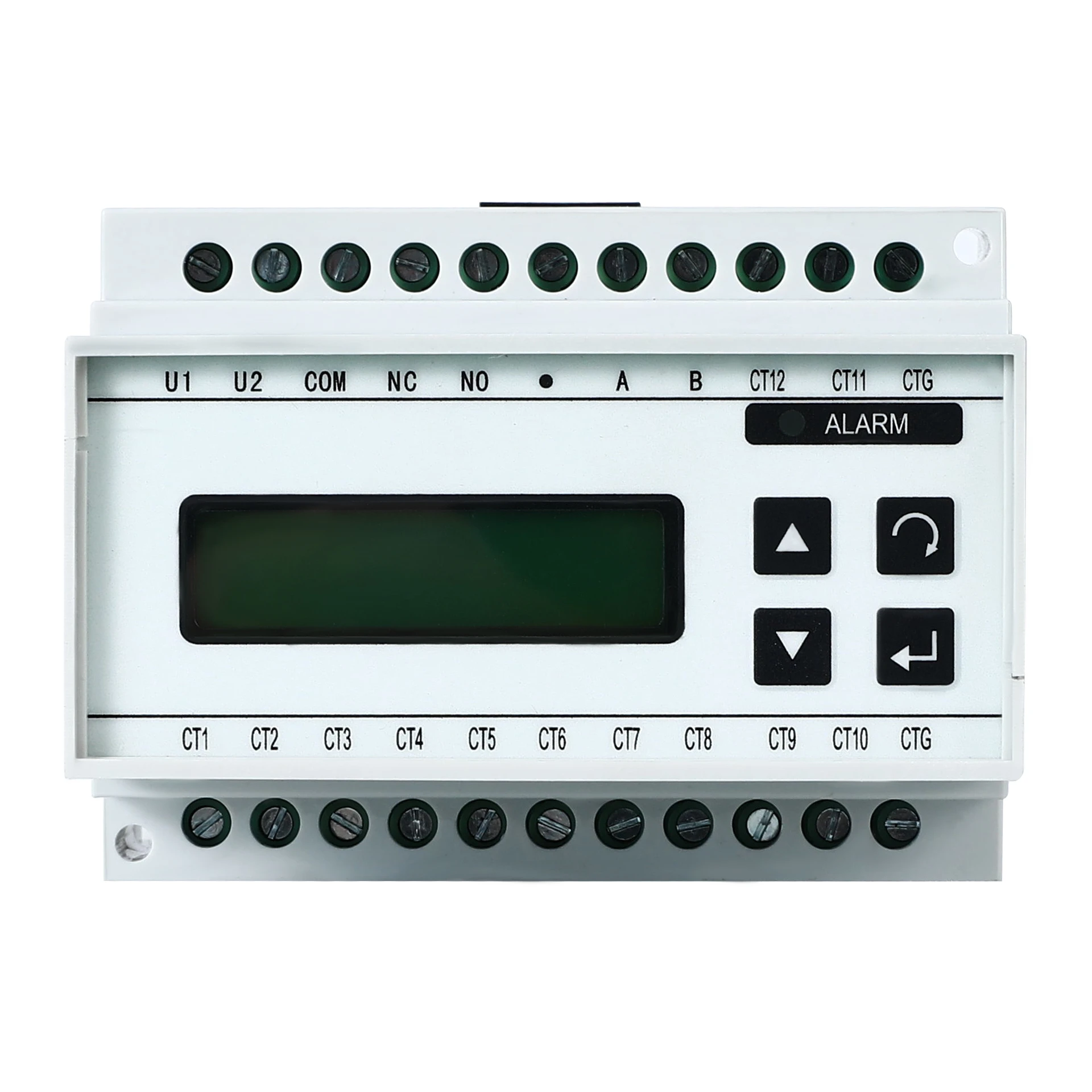

DM08-CT Insulation Fault Tester
Overview
When an insulation fault occurs in the IT circuit,the DWMIT insulation monitor drives the DM08-CT Insulation Fault Tester to send a special insulation fault test signal.This signal is evaluated and located by the real-time operating DM08-PR Insulation Fault Evaluator,the
corresponding indicator light illuminates,and the output relay closes. The DM08-CT can be set locally,or remotely configured via the
QBM communication bus connected to the MXS-CM.
DM08-CT Insulation Fault Tester
Overview
When an insulation fault occurs in the IT circuit,the DWMIT insulation
monitor drives the DM08-CT Insulation Fault Tester to send a special i
nsulation fault test signal.This signal is evaluated and located by the
real-time operating DM08-PR Insulation Fault Evaluator,the
corresponding indicator light illuminates,and the output relay closes.
A single DM08-PR Insulation Fault Evaluator supports up to 12 detection branches,and can also be networked via the QBM bus to locate insulation faults in up to 1188 branches simultaneously.
